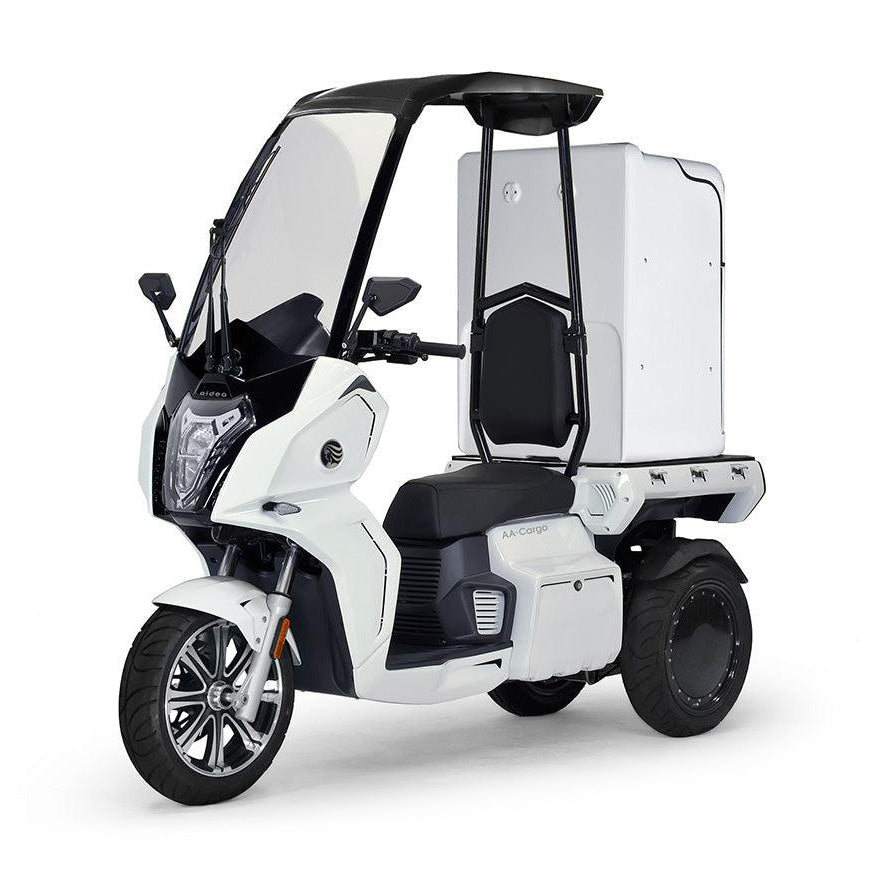

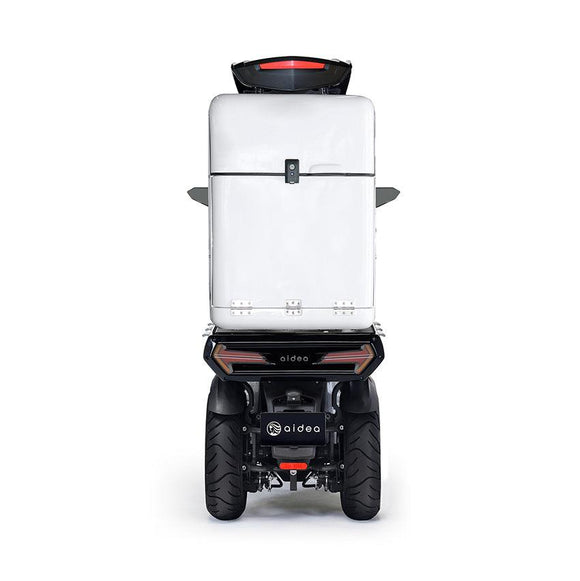

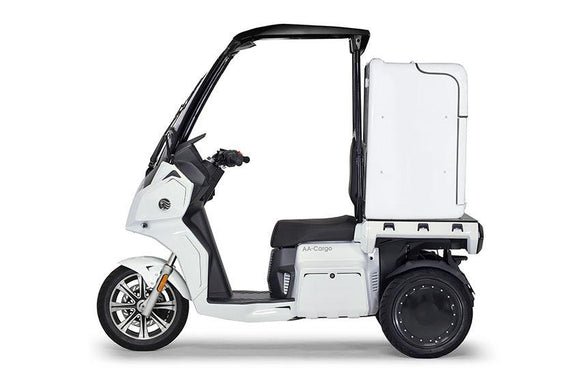

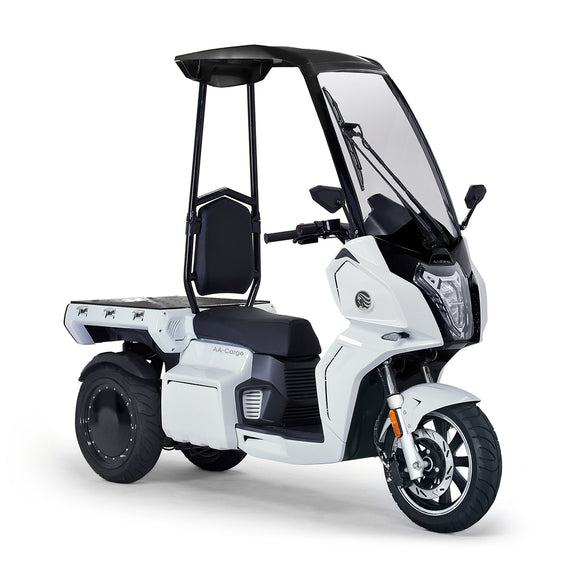

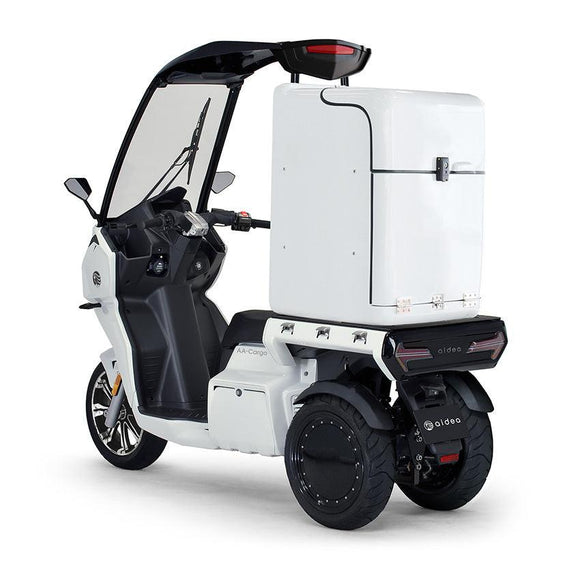

AA-Cargo A safe and convenient electric 3-wheel vehicle, perfect for deliveries.
AA-Cargo L2e / L5e With its unique body configuration of a highly stable 3-wheel structure, along with its signature large screen, roof, a fully flat cargo bed that can accommodate a variety of boxes, independent right-and-left rear suspension, as well as its large 13-inch wheels, AA-Cargo solves various issues of conventional business bikes.
With its unique body configuration of a highly stable 3-wheel structure, along with its signature large screen, roof, a fully flat cargo bed that can accommodate a variety of boxes, independent right-and-left rear suspension, as well as its large 13-inch wheels, AA-Cargo solves various issues of conventional business bikes.

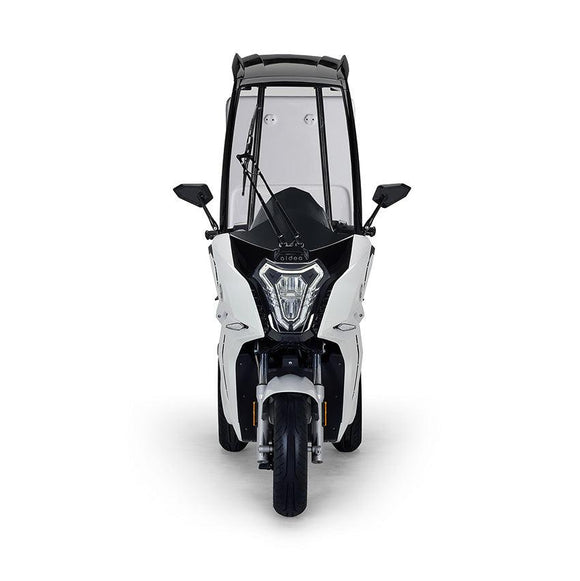

Bright LED headlights Equipped with a high intensity LED headlight, it not only brightly illuminates the road surface, but also ensures the safety of the rider by increasing visibility. Low power consumption and long life is also a great feature of LED lights.
Provides comfortable rides regardless of weather The front screen and roof protect the rider from cold rain or harsh sunshine. Wipers with washer function ensure good visibility and comfort even in the rain.
Easy to see LCD display A large, highly visible and driver-friendly LCD meter graphically displays speed, battery level, remaining distance, time, and various other indicators in bright full-color.
Stable disc brakes Equipped with front and rear disc brakes that provide stable braking power even in the rain. The front and rear brakes are designed to work together in a balanced manner to accommodate a wide range of riders, from beginners to experienced riders.
Large-diameter wheels Both front and rear wheels are equipped with large 13-inch diameter wheels, ensuring a stable and comfortable ride, even over bumps or on poor road conditions.
Rear suspension for best comfort Independent right-left rear suspension, developed from the double wishbone suspension of 4-wheeled vehicles, provides smooth and stable driving even on rough roads and over bumps.
Electricity supply from the vehicle Two USB ports (1A / 2.1A) are equipped on the top of the left glove box to charge portable devices such as smartphones.
Effortless reverse One of the comfort features of AA-Cargo is the reverse function. When the rider turns the throttle while pressing the switch on the right handlebar, the motor reverses and the vehicle goes into reverse. This makes it easy to maneuver around narrow alleys and parking spaces while sitting in the seat.
Class 2B driving license
AA-Cargo L2e
AA-Cargo L5e
Length x Width x Height
2,020mm × 685mm × 1,715mm
Seat Height
700mm
Capacity
1 Passenger
Motor Type
Brushless DC Wheel Hub Motor
Power
2.03kW
4.06kW
Gear Box
Integral Wheel Hub Motor
Battery Type
Lithium Ion 48V
Vehicle Charging Inlet①
Type 1 / Type 2
Input Voltage
100V – 240V AC
Battery Capacity
3.85kWh
Charging Time②
Around 3 hours full charge, 2 hours to 75%
Distance per Charge③
89km
Suspension
Front
Φ35 Hydraulic Telescopic
Rear
Single Shock with Preload Adjustment Mechanism
Tires
Front
120/70 – 13″
Rear
130/60 – 13″ ×2
Brakes
Front
Φ240mm Disc
Rear
Φ220mm Disc × 2
Waterproof and Dustproof Performance
IP65 (Battery)
Warranty
Up to 2 years or 30,000km (Battery Guaranteed 50% of capacity)
①Type of inlet depends on the requirement in the local market ②Based on 220V AC input ③Figure is for reference only and may vary depending on the loading weight and road conditions.
